Flexcore Series

Schedule a Consultation and Get a FREE Yeti Rambler!

Please watch the FLEXCORE Screw Pumps for Lube Oil and Hydraulic Applications! Go To Webinar

Flexible, Engineered Leistritz Solution Patented Easy-To-Change Cartridge Technology

FLEXCORE is a flexible solution for installation in new and existing piping systems. It supports a broad range of applications including lubrication, fuel oil & burner services and hydraulic systems. Thanks to the unique modularity of the housing and the patented cartridge element, it is flexible for any installation position and standard. It is configurable for many different installation for flange orientations in 90° increments. FLEXCORE provides a higher flow rate at a smaller size. Extremely robust, virtually wear-free, and uniquely easy to maintain. It comes in steel and ductile iron options.

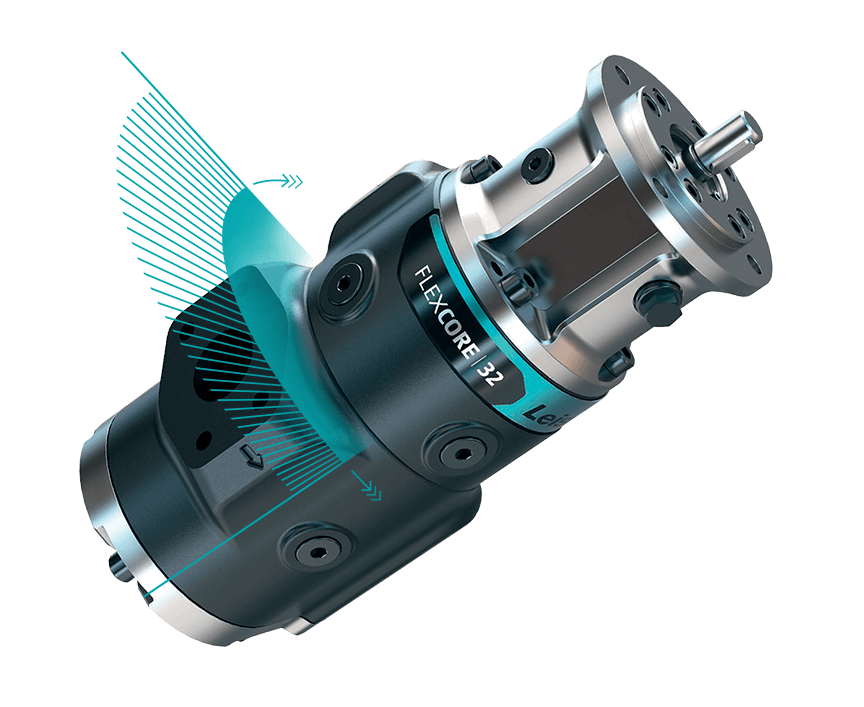

Flexcore 32 (Flexible, Engineered Leistritz Solution Patented Easy-To-Change Cartridge Technology)

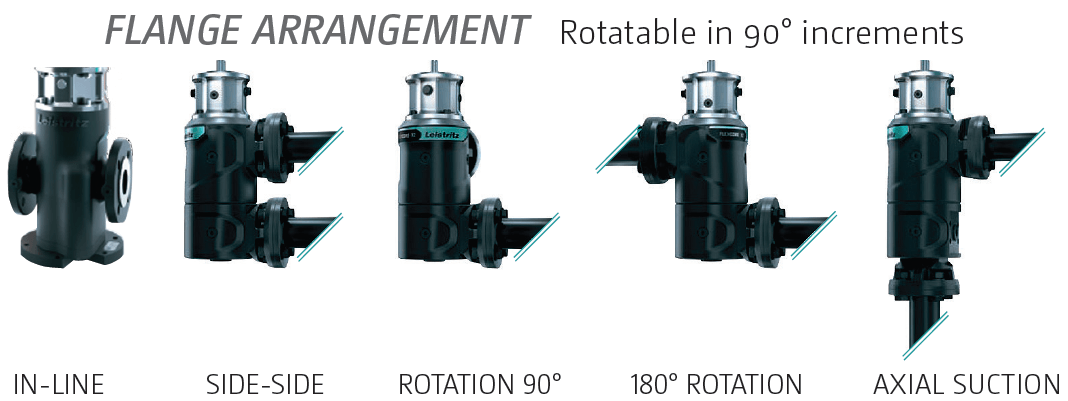

Flexcore Series Flexcore Flange Arrangement
Flexcore Mounting Options

Benefits:

  • Configurable for many different installations with flange orientations in 90° increments.
  • Patented Easy-To-Change Cartridge Technology ensure maximum uptime.
  • High-performance features include hardened rotors and a patented hydraulic balancing system.
  • Meets API auxiliary service applications.
  • Available from stock
  • Flexible solution for new and existing piping
  • Available in iron or steel
  • Higher flow with a smaller footprint
  • Due to patented internal balance line, there is a significant increase in service life
FLEXCORE SIZE 25 32 38 45 52 60
Viscosity (cSt) 1.1-2500 1.1-2500 1.1-2500 1.1-2500 1.1-2500 1.1-2500
Operating Temperature (F) 14° – 356° 14° – 356° 14° – 356° 14° – 356° 14° – 356° 14° – 356°
Max Suction Pressure (PSI) max. 116 max. 116 max. 116 max. 116 max. 116 max. 116
Differential Pressure (psi) 14.5 – 580 14.5 – 580 14.5 – 580 14.5 – 580 14.5 – 580 14.5 – 580
Flow Rate (gpm) 1.8-13 4-26.4 7.4-47 12-78 20-97 29-149
Size (SC) 5.5 x 14.4″ 5.5 x 14.4″ 7.5 x 17.8″ 7.5 x 17.8″ 9 x 22.5″ 9 x 22.5″
Weight (SC) (lbs) 48.5 48.5 lbs 112.4 112.4 216 216
Size (CC) 5.5 x 13.5″ 5.5 x 13.5″ 5.9 x 18.1″ 5.9 x 18.1″ 7.3 x 22.5″ 7.3 x 22.5″
Weight (CC) (lbs) 37.5 37.5 68.3 68.3 136.7 136.7
*All sizes come in steel (SC) and ductile iron (CC).
